Product Details
＋

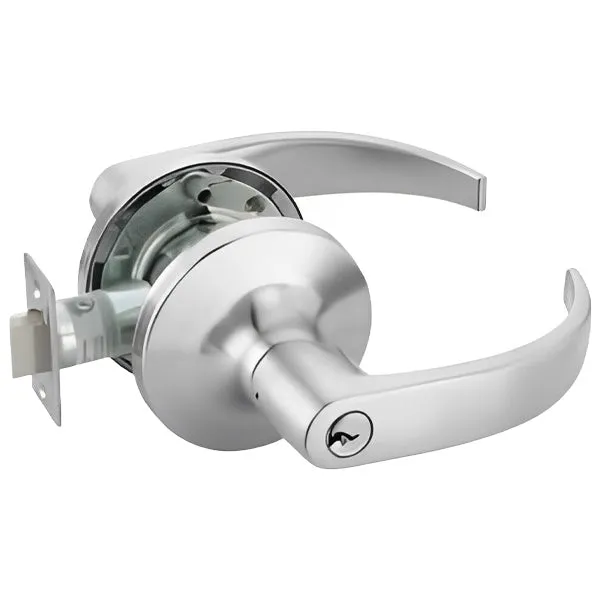

The Yale PB5430LN cylindrical lock series is designed for industrial, commercial, and institutional use. The Yale 5400LN series heavy-duty cylindrical lockset offers no compromise when it comes to rugged reliability and performance. All 5400LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5400LN cylindrical lock series is certified to the ANSI/BHMA A156.2, Series 4000, Grade 1.
Features:
- Patented free-wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.
- Stainless steel latch bolt provides added strength and wear resistance.
- Wear-resistance plates in the chassis help extend the life of the lock body and provide smoother lock operation.
- Longer thread locking through bolts through the chassis provides greater stability and prevents rotation.
- Lifetime warranted heavy-duty lever return springs prevent lever sag and provide a positive return of the lever to the horizontal position.
Specifications:
| Manufacturer | Accentra (Yale) |
| Installation | Institutional, Utility, Asylum |
| Lever Knob | Pacific Beach (PB) |
| Rose/Escutcheon | 3-1/2" Rose Diameter |
| Keyway | GA Keyway |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" to 2" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Strike Number | 497 |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
| Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar | No |
| UL Listing Type | ANSI A156.2, Series 4000, grade 1, UL Listed |
