Product Details
＋

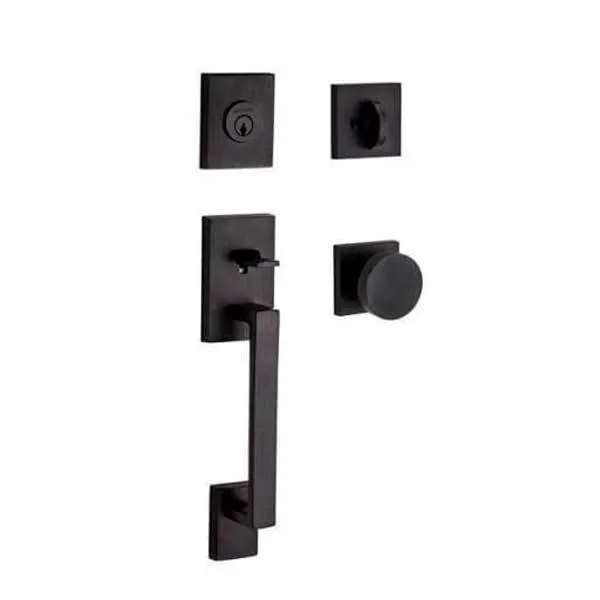

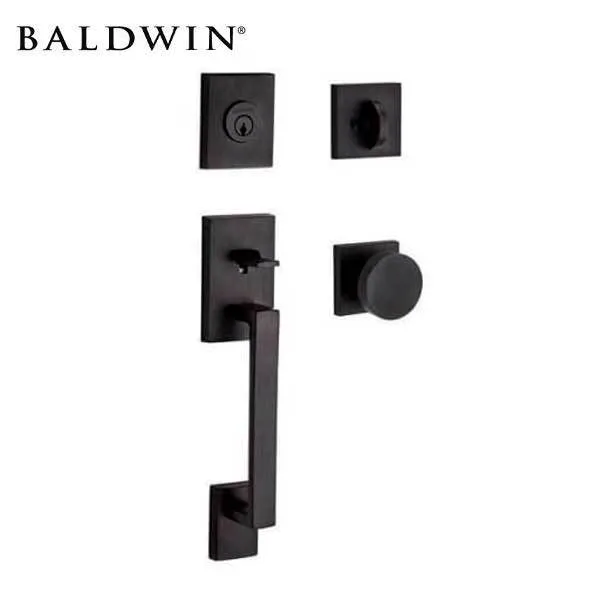

La Jolla Contemporary - Single Cylinder Handleset with Contemporary Square Rose and Square Knob on Interior
Single Cylinder: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security
- Solid forged brass construction built to last a lifetime
- Reversible handing for maximum versatility
- Includes all mounting hardware for quick and easy installation
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
- Interior comes in same finish as exterior; if split finish is desired, please contact customer service
- Accommodates door thickness 1-3/4" to 2"; up to 2-1/2" thick door with service part kit (Part Number: 8BR0701)
Specifications
| Configuration |
Handleset |
| Cylinder | Single Cylinder - 5 Pin C-Keyway Pin & Tumbler |
| Handing | Reversible Left or Right |
| Finish | 190 - Satin Black |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Center to Center |
5.5 in. |
| Cross Bore |
2-1/8" |
| Door Thickness |
1-3/4" to 2" |
| Latch | 6 Way Latch |
| Strike | Dual Strike Kit |
| Grip Center to Center |
8.40625 in. |
| Knob Diameter | 2.34375 in |
| Trim Height |
12.46875 in. |
| Interior Trim Width |
2.6875 in. |
| BHMA Certification |
Grade 2 |
Downloads
