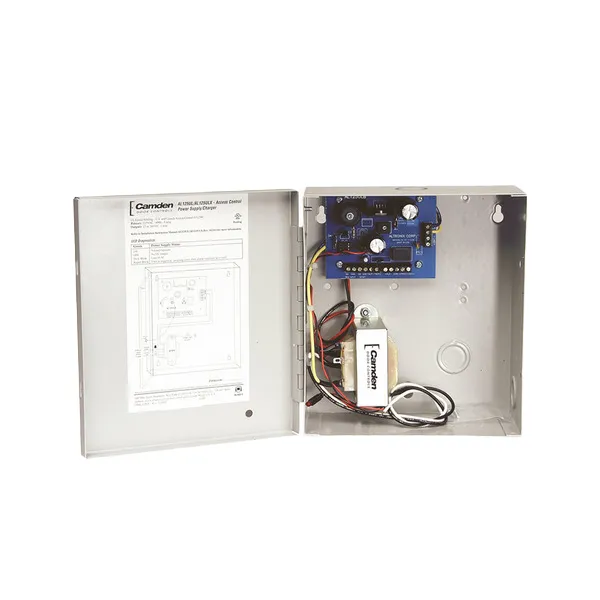

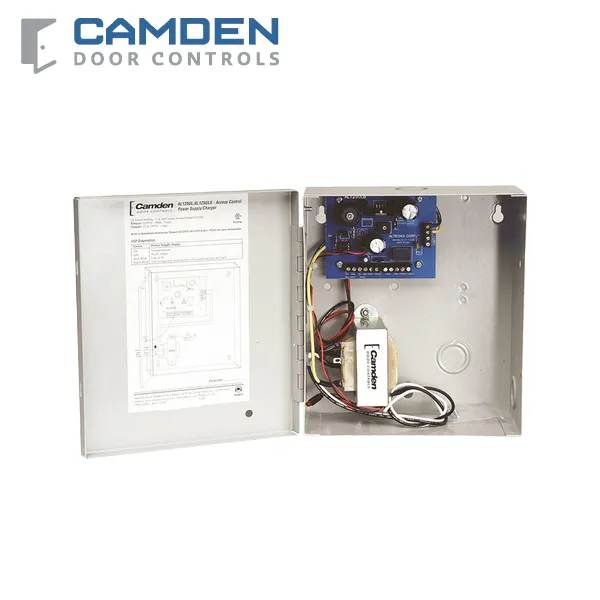

The Camden's CX-PS150UL is a power supply /charger that supplies a total of 1.7 amps nominal continuous supply at nominal 12/24VDC. There are 2 outputs for Magnetic Lock or Electric Strike each with over current protected by 2.5 amp P.T.C. The CX-PS150UL can accommodate 1 - 4Ah battery. UL listed with UL294 Edition 7th. ULC-S533.

• Input : 60Hz 1.8A max,120VAC for CX-PS150
• Output 1 Amp continuous supply current at Nominal 12/24VDC controlled output for Maglock and Electric Strike.
  Auxiliary Output 200mA at 12/24VDC for Access Device.
• Built in Battery Charger of 500 mA for sealed lead acid or gel cell batteries.
• Battery reversal protection.
• Automatic switch over to stand-by battery upon AC failure.
• LEDs display on enclosure door (LED Green for AC ,Led Blue for DC).
• Enclosure dimension CX-PS150 8” x 9” x 3.5” (204mm x 231 x 89mm)

Specifications:

Voltage:	12/24 VDC OUTPUT
Input:	60Hz 1.8A max,120VAC
Output:	1 Amp continuous supply current at Nominal 12/24VDC controlled output for Maglock and Electric Strike. Auxiliary Output 200mA at 12/24VDC for Access Device
Battery Charger	(500 MA) Battery reversal protection
Enclosure Accommodates:	The CX-PS150UL can accommodate 1 - 4Ah battery
Enclosure Dimensions:	8” x 9” x 3.5” (204mm x 231 x 89mm)
