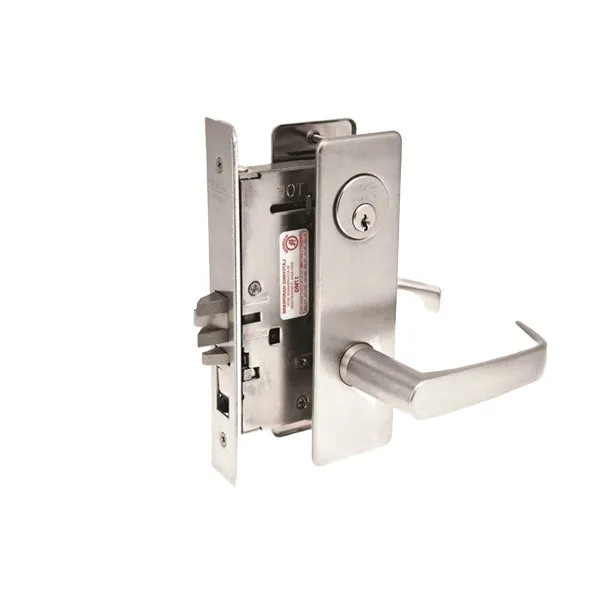

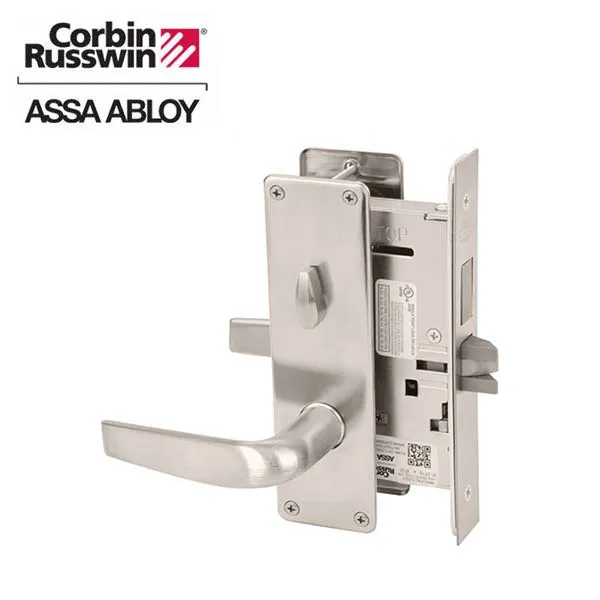

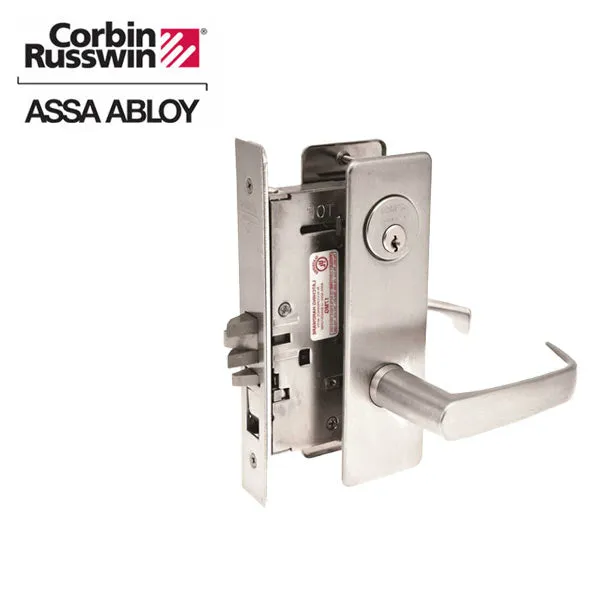

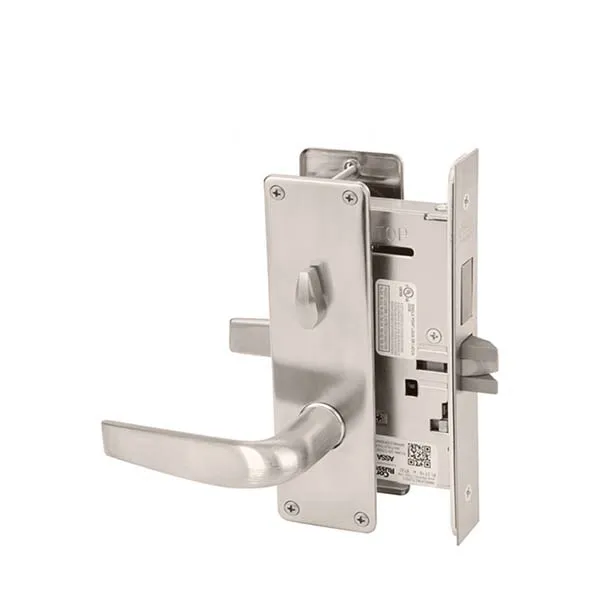

The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial, and government applications. Constructed of heavy-gauge steel, the lock body features our patented Quick Reversible latch bolt, and a 1” stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels, and other high-use applications.

• The lockset can be re-handed without disassembling the lock case

• Security trims provide a vandal-resistant barrier.

• Multi-function lock body, allowing 12 functions to be configured from one lock body.

• Can be used with new or existing Corbin Russwin key systems, including patented high-security Access 3 cylinders.

• Accepts cylinders of most other manufacturers.

• Provides life safety and security in a single door prep, saving the additional cost of a deadlock

• Through-bolted trim designs for proper alignment and increased security.

Specifications

Construction:	Heavy-gauge Steel
Lock Function:	F19 - Privacy Bedroom or Bathroom
Door Thickness:	1-3/4" (44mm) standard
Backset:	2-3/4"
Handing:	Factory Handed, but quickly reversible
Strike:	ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
Latch bolt:	2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
Deadbolt:	1" stainless steel deadbolt
Cylinder:	IC 6-pin with temporary construction core
Keys Included:	2
Keyway:	L4
Trim:	Lever: Cast Escutcheon: Wrought
Certifications:	ANSI/BHMA Certified A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.
Manufacturer's Warranty:	Ten Year Limited
