Brand

CP PLUS

Product Type

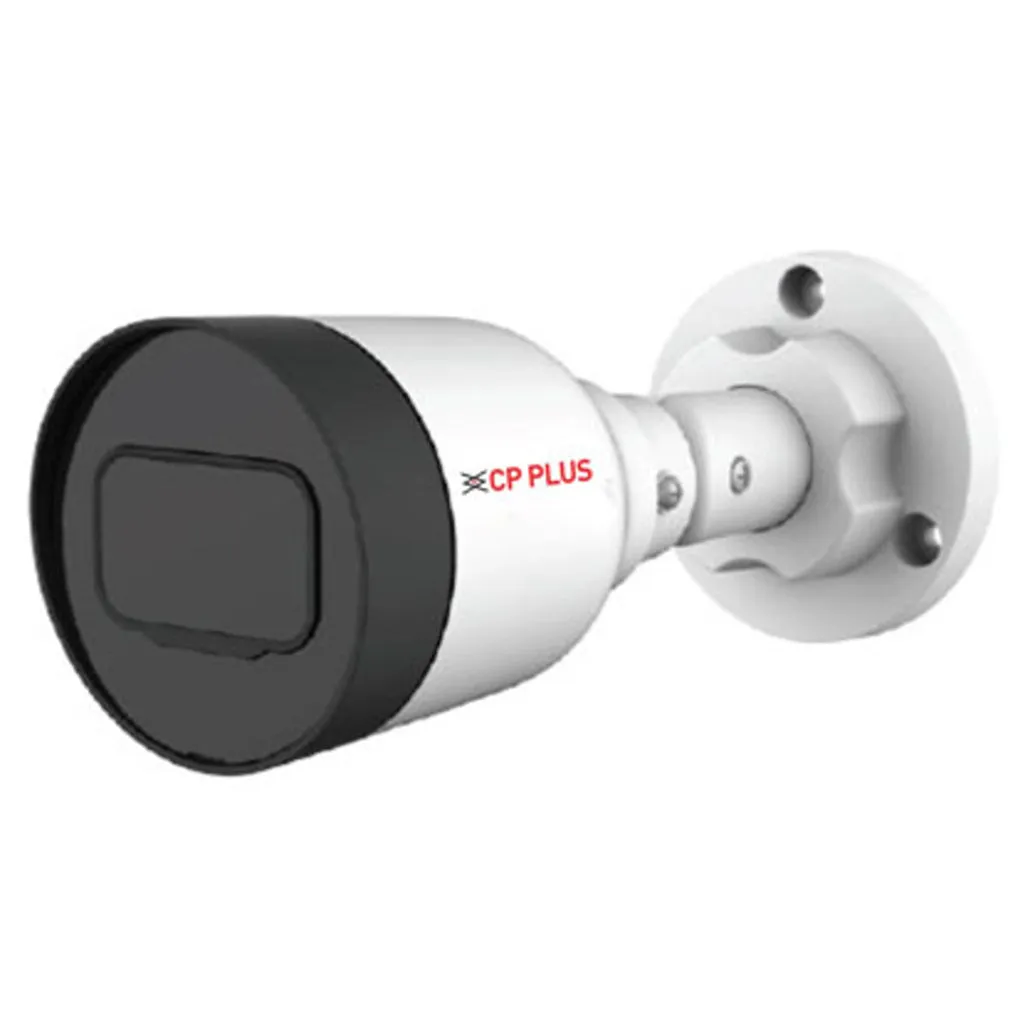

Bullet Camera

Product Code

CP-UNC-TA21PL3

Image Sensor

1/2.7” 2MP PS CMOS Image Sensor

Minimum Illumination

[email protected]

Effective Pixels

1920(H)x1080(V)

Body Type

Bullet

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Lens

3.6mm fixed lens (2.8mm optional)

Gain Control (AGC)

Auto/Manual

Video Compression

Smart H.265 /H.265/Smart H.264 /H.264/ H.264B/ MJPEG (only supported by the sub stream)

Angle Of View

3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°

Back Light Comp.

BLC/ HLC/ DWDR

Frame Rate

Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)

Resolution

1080P (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Motion Detection

Off / On (4 Zone, Rectangle)

Privacy Mask

4 areas

ICR

Auto(ICR)/Color/B/W

ROI

Yes (4 areas)

Bit Rate

H.265: 12 Kbps–6400 Kbps H.264: 32 Kbps–6144 Kbps

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; ONVIF (Profile S/Profile T); CGI; P2P; Genetec

Ethernet

RJ-45 (10/100Base-T)

User Account

20 Users

Smart Phone

iPhone, iPad, Android Phone

IR Range

IR Range of 30 Mtr.

Operating Temperature

-40°C to 60°C (-40°F to 140°F)/less than ≤ 95%

Power Source

DC12V, PoE (802.3af)

Power Consumption

1.4W (12V DC); 2.2W (PoE)

Weatherproof Standard

IP67

Dimension

162.6 mm × Φ70 mm

Weight

0.22Kg

Warranty

As Per Manufacturer Terms And Conditions
