Additional Features:

• Fast measurement speed (up to 200 readings per second, over the GPIB, with E-series sensors)
• Speed improvement of x2 using the 8480 series power sensor (compared to 437B)
• No range-switching delays with 8480 series sensors, and only one fast-range switch point with E-series sensors
• High-resolution display with backlighting for a wide viewing angle of displayed data
• Save and recall of up to 10 instrument states
• GPIB connector for remote control of all functions
• Code compatibility with 437B
• Conformity to CE and CSA standards

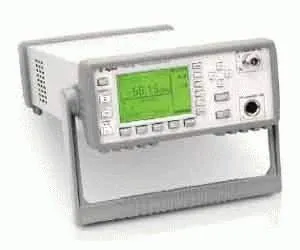

The Agilent E4418A is fully compatible with the 8480 series and the E-series power sensors (except the E9320A family). Depending upon which sensor is used, the Agilent E4418A can measure from -70 dBm to 44 dBm at frequencies from 100 kHz to 110 GHz. Designed for bench and automatic test equipment (ATE) use, the Agilent E4418A makes fast (up to 200 readings per second with E-series sensors), accurate and repeatable power measurements.
