Product Details
＋

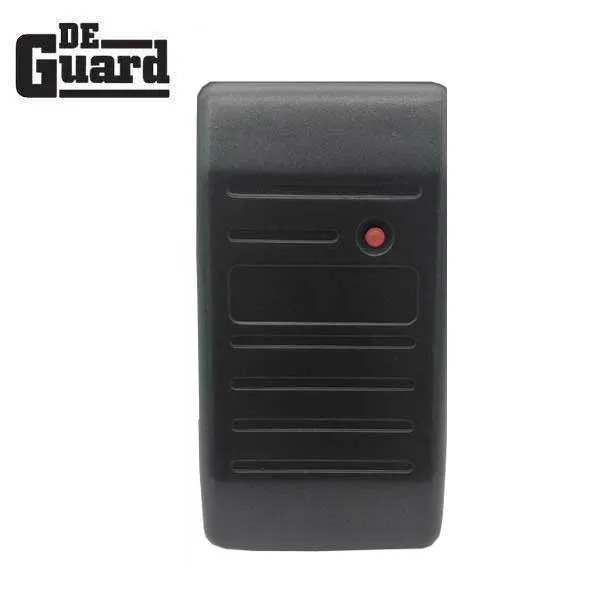

HID Compatible Wiegand Proximity Card Reader (125KHz). Its secure potted electronics are ideal for both indoor and outdoor applications.
- Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled.
- Potted reader suitable for indoor or outdoor use.
- 18" (45 cm) wire pigtail standard
- 9~24 VDC Operation
- Low current draw – 50mA max.
- Built-in buzzer for external alarm input
- Multicolor status LED
- EM 125 kHz
- Outdoor rated – IP66
- Wiegand output reader – EM 26 bits
- Sturdy black ABS plastic housing
Specifications
| Operating Voltage | 9~24 VDC |
| Current Draw - Standby | 20mA@12VDC |
| Outputs - Wiegand | EM – 26 bits |
| Card type | 125kHz EM |
| Card read range | 0~2" (0~5 cm) |
| IP Rating | IP66 |
| Enclosure material | Black ABS plastic |
| Operating temperature | 40°~140° F (-40°~60° C) |
| Operating humidity | 10~98% non-condensing |
| Dimensions | 2-15/16"x4-3/4"x13/16" (75x120x20 mm) |
| Weight | 5.5-oz (155g) |
