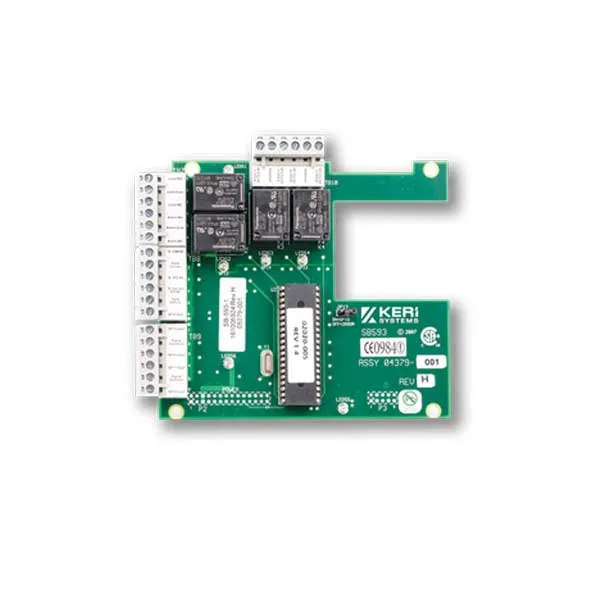

The SB-593 Satellite Expansion Board plugs directly onto the to provide an additional 8 general purpose inputs and 4 general purpose outputs. With a simple jumper setting, two of the inputs and two of the outputs are configured to economically manage a second door.

Note this item requires the to work. It is an expansion board to expand the amount of doors that can be controlled for the PXL-500

More Information Below

Diagram

See Diagram below for the PXL- 500 with the SB-593 expansion board installed
