Product Details
＋

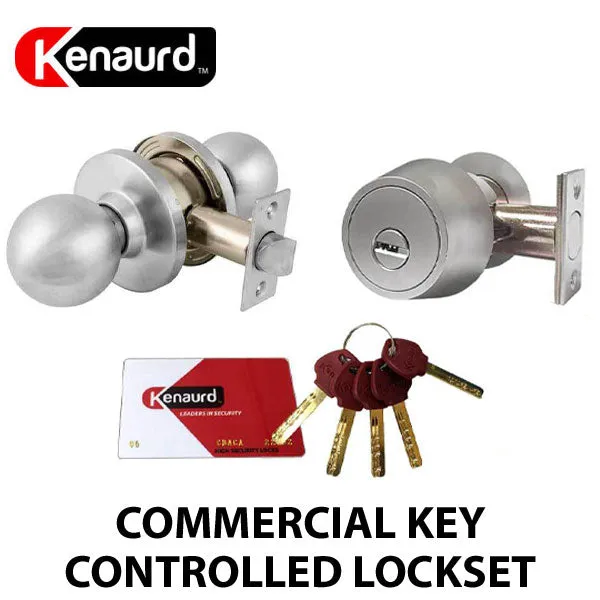

This Key Controlled Deadbolt and Knob Combo is machined engineered and designed to resist physical attacks and vandalism. The pick resistant dimpled keyway system is a deterrent to even the most persistent intruders. Commonly used in Office & Residential buildings, Hospitals and schools where security is essential
Includes
- -Key Controlled - Deadbolt - Satin Chrome - 26D - Satin Chrome
--
More Information Below

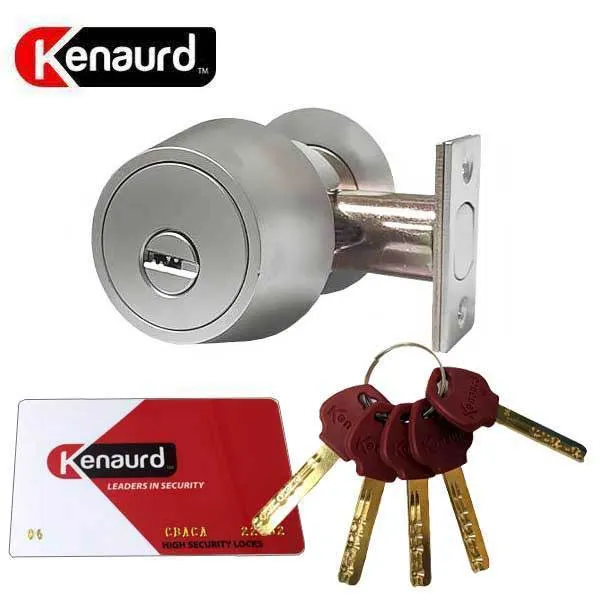

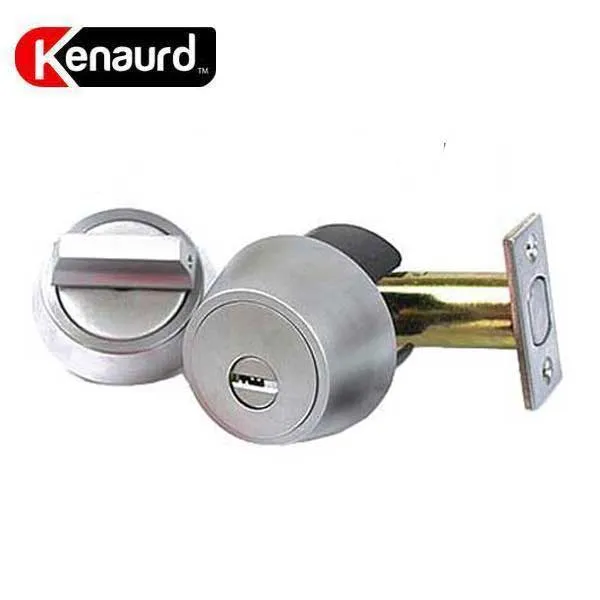

Key Controlled Deadbolt Specifications
| Application | Commercial or Residential single- and multi-family doors |
| Door Size | Use with 1-3/8 in. to 1-3/4 in. door |
| Cylinder | Removable KIK Key Controlled Brass Dimple Cylinder |
| Keyway | Key Controlled Pick Resistant #06 Keyway |
| Keys | Includes 5 Dimple Keys & 1 Duplication Card |
| Backset |
Universal deadbolt fits 2-3/8 in. or 2-3/4 in. backset |
| Cover Ring | Heavy Duty Cover Ring Included |
| Finish | 26D Satin Chrome |
| Keying | Keyed Alike Up To 12 - KA 12 |
| Certification | Commercial Standard Certification ANSI/BHMA A156.36-2010 Grade 1 |
| Warranty | Limited lifetime mechanical warranty |

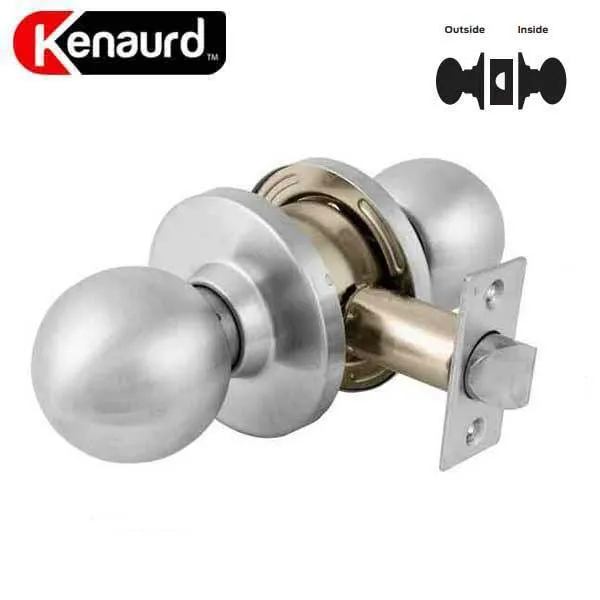

Commercial Door Knob Specifications
| Lock Function | ANSI F75 Passage lock |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" - 2" |
| Backset |
2 3/4" (70 mm) standard, Optional 2 3/8" (60 mm) sold separately |
| Latch |
Deadlatch 1/2" (13 mm) throw |
| Material | Stainless Steel / Zinc |
| Thru Bolts | Removable thru-bolts fit existing preps like Schlage, Best, Yale, Corbin Russwin, Sargent, Arrow and more |
| Strike | ANSI 4-7/8"x 1-1/4" |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
Exceed ANSI A 156.2 Grade 2 locked lever torque requirement. Tested to exceed 4,000,000 cycles, ANSI Grade 2 requirement BHMA Certified UL 3-hour Fire Rated |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
