Product Details
＋

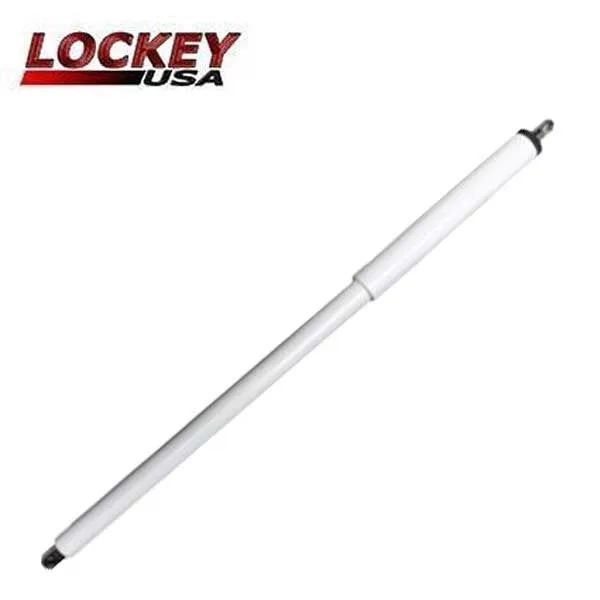

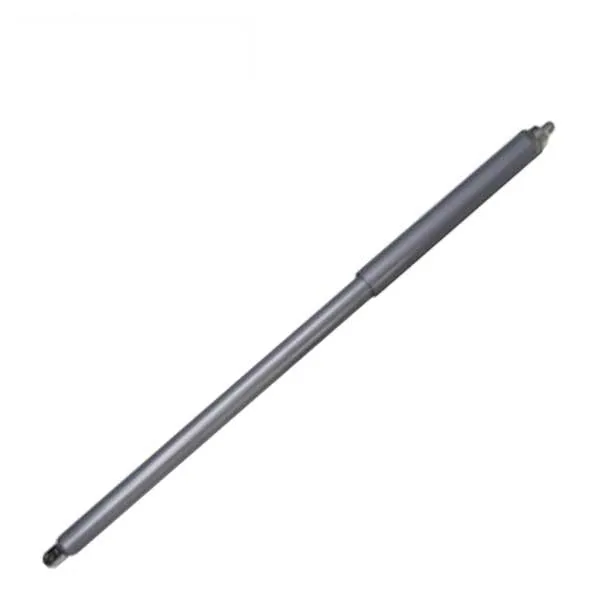

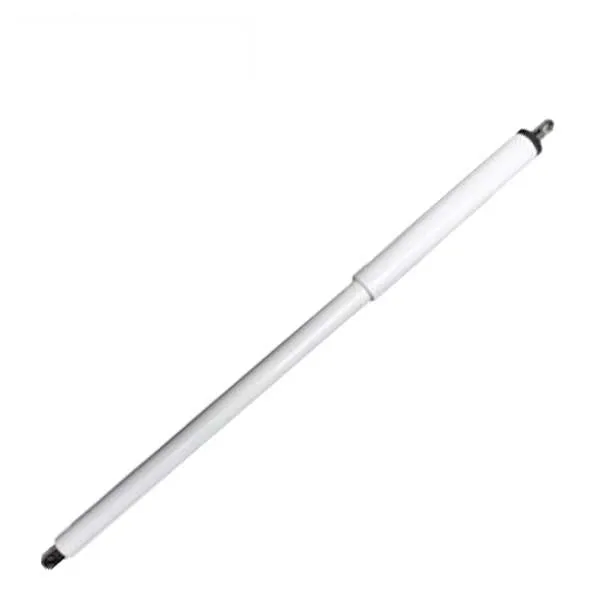

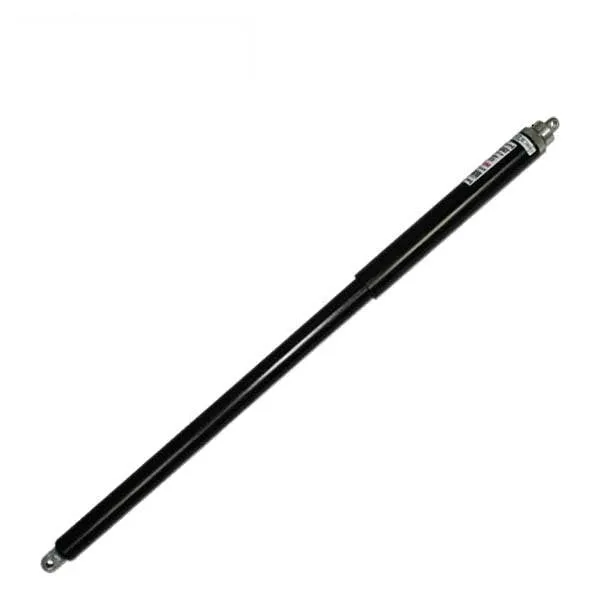

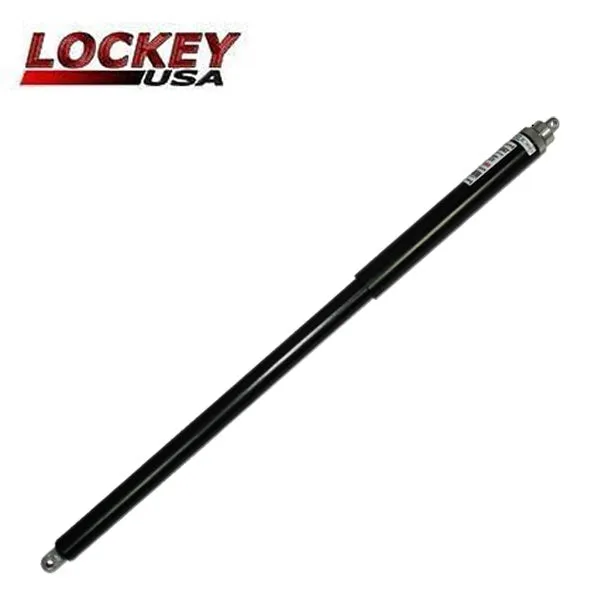

LK-TB650
Features
- Adjustable hydraulic (nitrogen gas) controlled closing speed
- Closes small and large gates from 150-250 lbs.

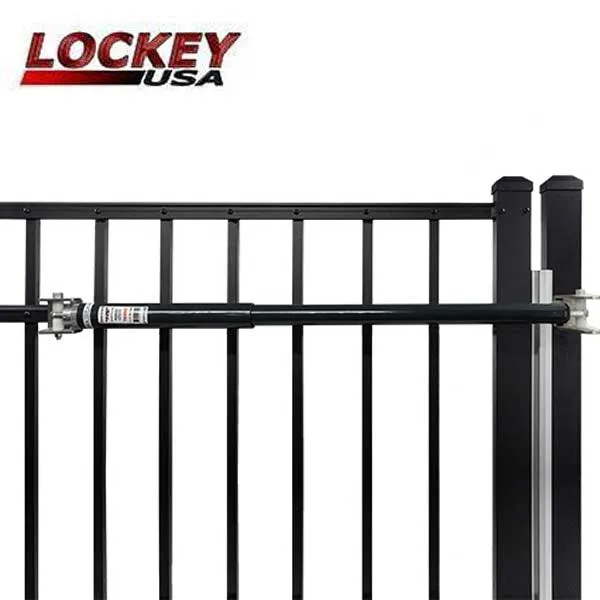

- Installs on top/middle/bottom
- Works with left and right hand gates
- Mounts on opening side of gate
- Pushes the gate closed
- Mounting brackets and fitting bar included
- Not compatible with gates less than 30 inches wide
- To retain product warranty & restrict gate opening angle, a gate stop must be installed
Specifications
| GATE DIMENSIONS |
Weight: 150-250 lbs. - Width: 44-72" |
| FINISHES AVAILABLE | Black; White; Grey |
| MAX. OPENING ANGLE |
100 Degrees |
| OPERATING TEMPERATURES | Min: 15 Degrees Fahrenheit* Max: 122 Degrees Fahrenheit* |
| TYPE OF GATE MATERIAL | Vinyl; Steel; Wood; Chain Link** |
| CLOSING / LATCH METHOD |
Hydraulic / Nitrogen Gas |
| MATERIAL | Steel |
| FINISH | PVC Coated |
| HINGE ARRANGEMENTS | In-line or Offset |
| OPENING PRESSURE | 8 - 18 lbs. |
| WARRANTY | 1 Year |
*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
**Gate Closer can be mounted on chain link with TB-LINX, sold separately.
Videos
How to Install TB400 Gate Closer
How to Install TB400 Gate Closer on Chain Link
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Lockey directly at 888.395.0163 or visit their support page .
