Product Details
＋

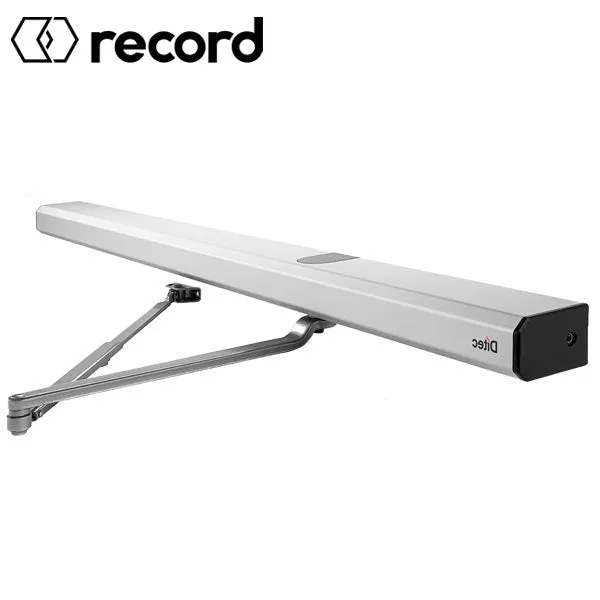

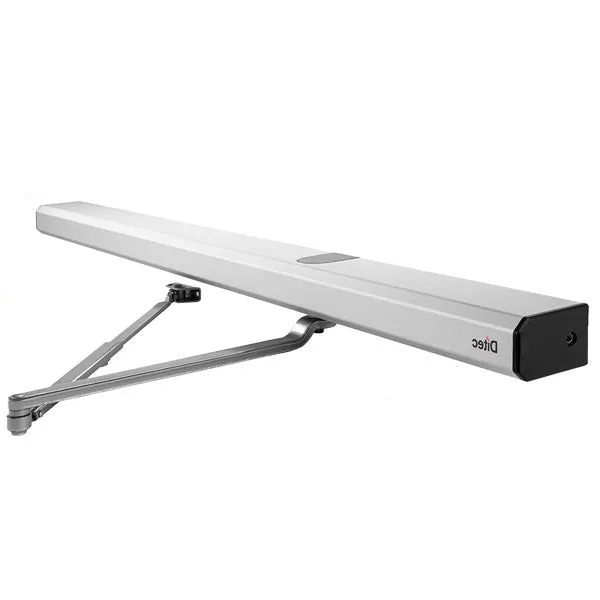

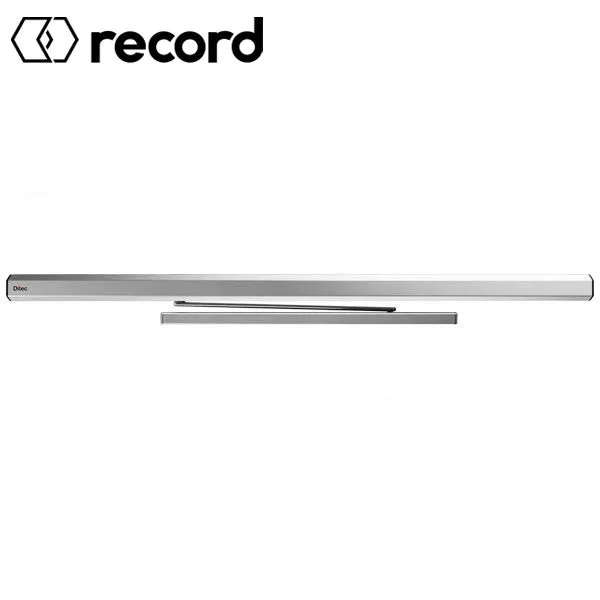

The Ditec HA7 low-energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Clear Finish
Push Arm and Push Arm included - Non Handed
Available for up to 48" doors
- Quality Heavy Duty Commercial Construction
- High precision gears made for sustained long-term use
- Electro Mechanical Design for simple dependable operation
- Permanent lubrication for maintenance free operation
- Machined alloy gearbox housing
- Smartphone Compatible: Can be controlled through the HA7 App
(See Download Below) - Advanced Technology
- On-board programming & Smartphone Compatible
- Built in strike/mag lock relay - fail safe or fail secure
- Separate inputs for activation and safety devices
- Plug-n-play design for fast trouble free installation
- Compatible with safety and activation devices
- Integrates with building access & security systems
- Durable
- Built to outlast the competition
- Perfect for high traffic locations
| Application | Single Interior Doors |
| Header Size: | 39" |
| Manual Opening/Closing Force: | Adjustable 5 to 15 lbs. |
| Handing: | Non-Handed |
| Header Size: | Height: 1.875” Depth: 3” Length: 39.5” |
| Arm: | Push or Pull |
| On/Off/Hold Open Switch: | Yes |
| Power Adapter: | Yes |
| Power Supply: | 120 VAC 10/-15%, 50/60 Hz |
| Power Consumption: | Max 90 W |
| Auxiliary Voltage: | 24 V DC, max 400 mA |
| Electromechanical locking connection: |
12 V DC, max 1200 mA or 24 V DC, max 600 MA |
| Ambient Temperature: | -20° C to 45° C |
| Relative Humidity: | Max 95% |
| Door Weight (max): | 200 lbs |
| Door Width (max): | 48” |
| ANSI/BHMA A156.19 Compliant: | Yes |
| UL/CUL Listing for UL 325/UL10C: | Yes |
| Surface Mounting: | Yes |
| Door Opening Angle (PUSH): | 80°-110°, with reveal 0-5 1/8” |
| Door Opening Angle (PULL): | 80°-110°, with reveal 0-2” |
| Opening Time: | Variable between 4.5-12 seconds |
| Closing Time: | Variable between 4.5-12 seconds |
