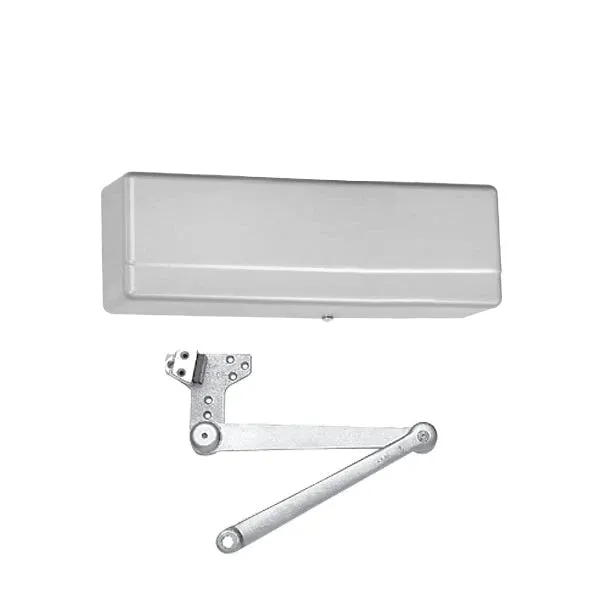

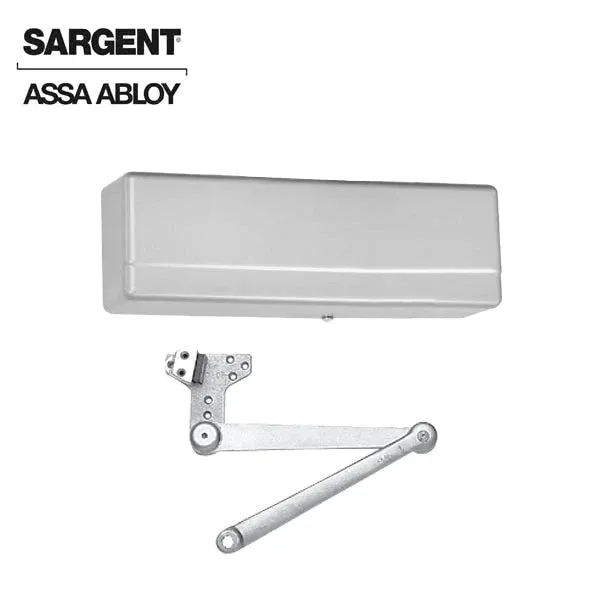

Name: Sargent - 281 - Powerglide Cast Iron Door Closer - Back Check Function - Regular Duty Parallel Arm - Adjustable Size 1-6 - Plastic Cover - Aluminum - Fire Rated - Grade 1
SKU: 1587740

Product Details ＋

The Sargent 281-P9-EN Regular duty door closers are designed for interior and exterior doors with quality and flexibility to meet virtually every application. All 281 Series closers are equipped with fluid that allows the units to operate effectively in extreme temperatures without readjustment. The spring size is adjustable to fit any application. The 281 Series door closers are certified to the ANSI/BHMA A156.4 Grade 1 requirements

Features

Exceeds 25 million cycles
Non-handed
Sprayed Aluminum Enamel finish
Full rack and pinion construction
1-1/2" diameter piston for superior door control
Self sticking templates supplied for most applications
Heavy duty mounting bracket for easy installation of full size iron closer
Closing speed, latching speed and backcheck shall be controlled by key operated valves
P9 Regular parallel arm application
For use in moderate duty institutional applications
120Ã‚ ° Maximum door opening
Double jointed arm provides flexibility in the vertical mounting position of closer
Cover secured by machine screws
Fasteners: Machine screws and self tapping screws provided for closer and arm

Specifications

Construction	Heavy Duty Cast Iron
Function	Door Closer
Interior or Exterior	Interior
Handing	Non-Handed
Finish	EN - Sprayed Aluminum Enamel
Door Width	24 - 48"
Diameter Piston	1-1/2"
Body Projection from Door	2-3/16"
Fasteners	Machine Screws and self tapping screws provided for closer and arm
Max. Door Opening	180°
ADA	Meets ADA requirements in all applications, except Push Side Track application
Fire Rating	UL 10C listed for positive pressure fire test
Certifications	Certified ANSI/BHMA A156.4 Grade 1
Warranty	30-Year Limited Manufacturer Warranty
