Product Details
＋

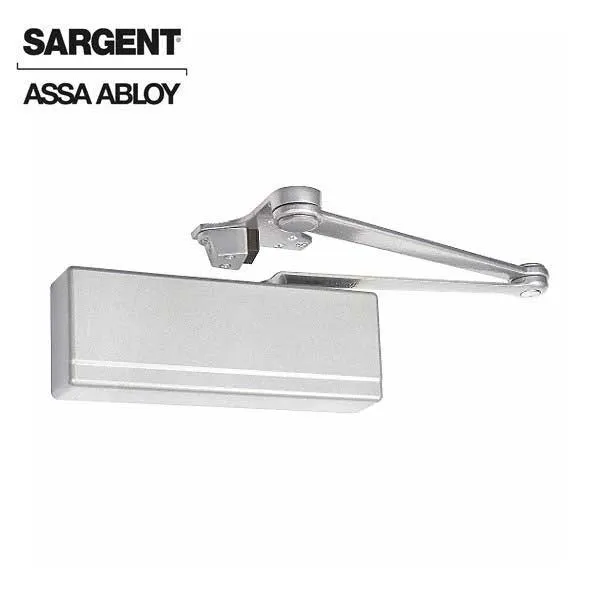

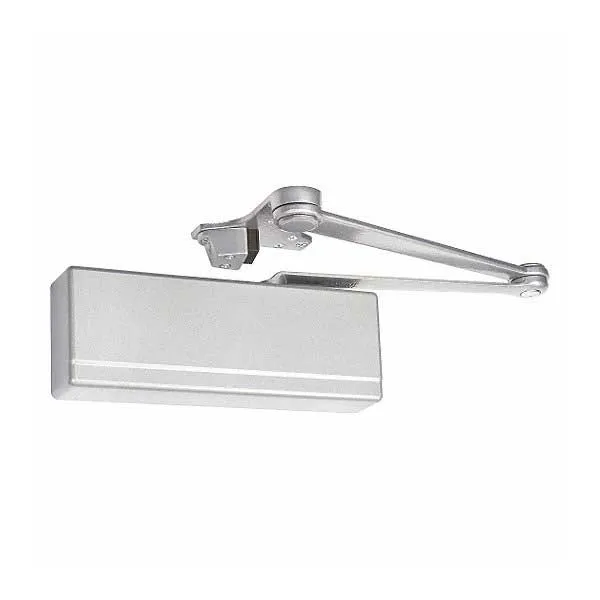

Designed to meet the needs of facilities maintaining “cast iron” specifications, the Sargent 281 Series Powerglide Cast Iron Door Closer features a heavy-duty one-piece cast iron body for superior strength and wear resistance. With a full complement of arm types and front-facing valves, the 281 series can be easily installed and maintained—for interior and exterior applications.
Features
- Exceeds 25 million cycles
- Sprayed Aluminum Enamel finish
- Heat treated full rack and pinion for high strength & wear resistance
- Heavy duty one piece cast iron body provides superior strength and wear resistance
- Self sticking templates supplied for most applications
- 1-1/2" diameter piston for superior door control
- Closing speed, latching speed and backcheck shall be controlled by key operated valves
- CPS - Heavy duty parallel arm with compression stop
- High impact non-corrosive plastic covers with two machine screws standard
- Adjustable spring power allows 281 closers a size range of 1 through 6
- UL/cUL listed for use on fire rated doors
Specifications
| Construction |
Heavy Duty Cast Iron |
| Function | Door Closer w/ Compression Stop |
| Interior or Exterior |
Universal |
| Handing |
Non-Handed |
| Finish |
EN - Sprayed Aluminum Enamel with Special Rust Inhibitor (SRI) Coating |
| Door Width |
24-48" |
| Diameter Piston |
1-1/2" |
| Body Projection From The Door |
2-3/16" |
| Application |
Door Closer |
| Arm Type |
CPS - Heavy Duty Parallel Arm with Compression Stop |
| Fasteners |
Machine Screws and self tapping screws provided for closer and arm |
| Max Door Opening |
105° |
| Stop Angle |
85° - 105° |
| ADA |
Meets ADA requirements in all applications, except Push Side Track application |
| Fire Rated | UL 10C listed for positive pressure fire test |
| Certifications | Certified ANSI/BHMA A156.4 Grade 1 |
