Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Number of Channels | 2 |
| Orientation | Side |
| Pulse Per Revolution | 120 PPR |
| Shaft Size | 0.374" |
| Special Features | Dual Quad Channel ; Complementary Outputs ; Side Termination |
| Supply Voltage | 5-28 V |
| Termination | MS3102R16S-1P |
Overview

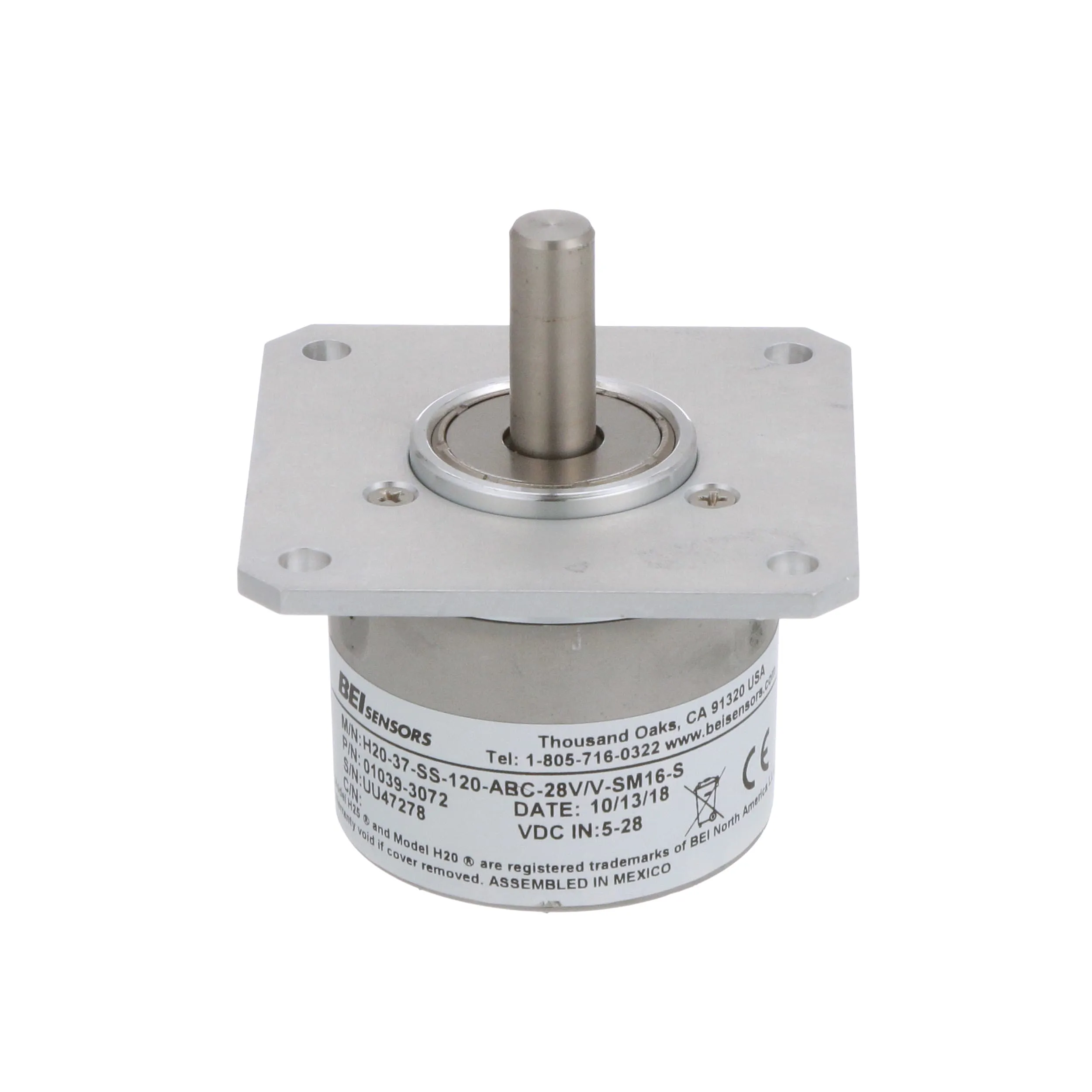

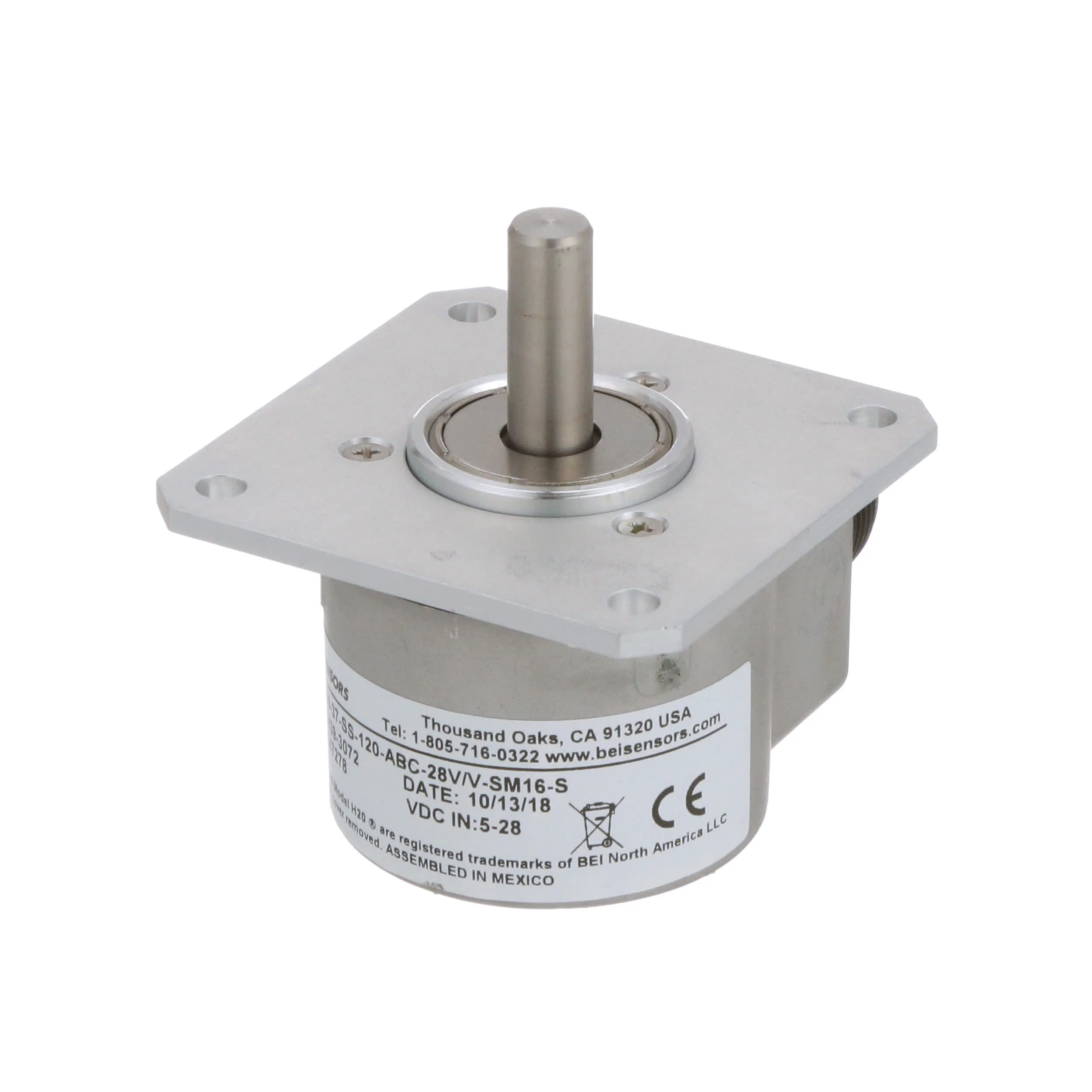

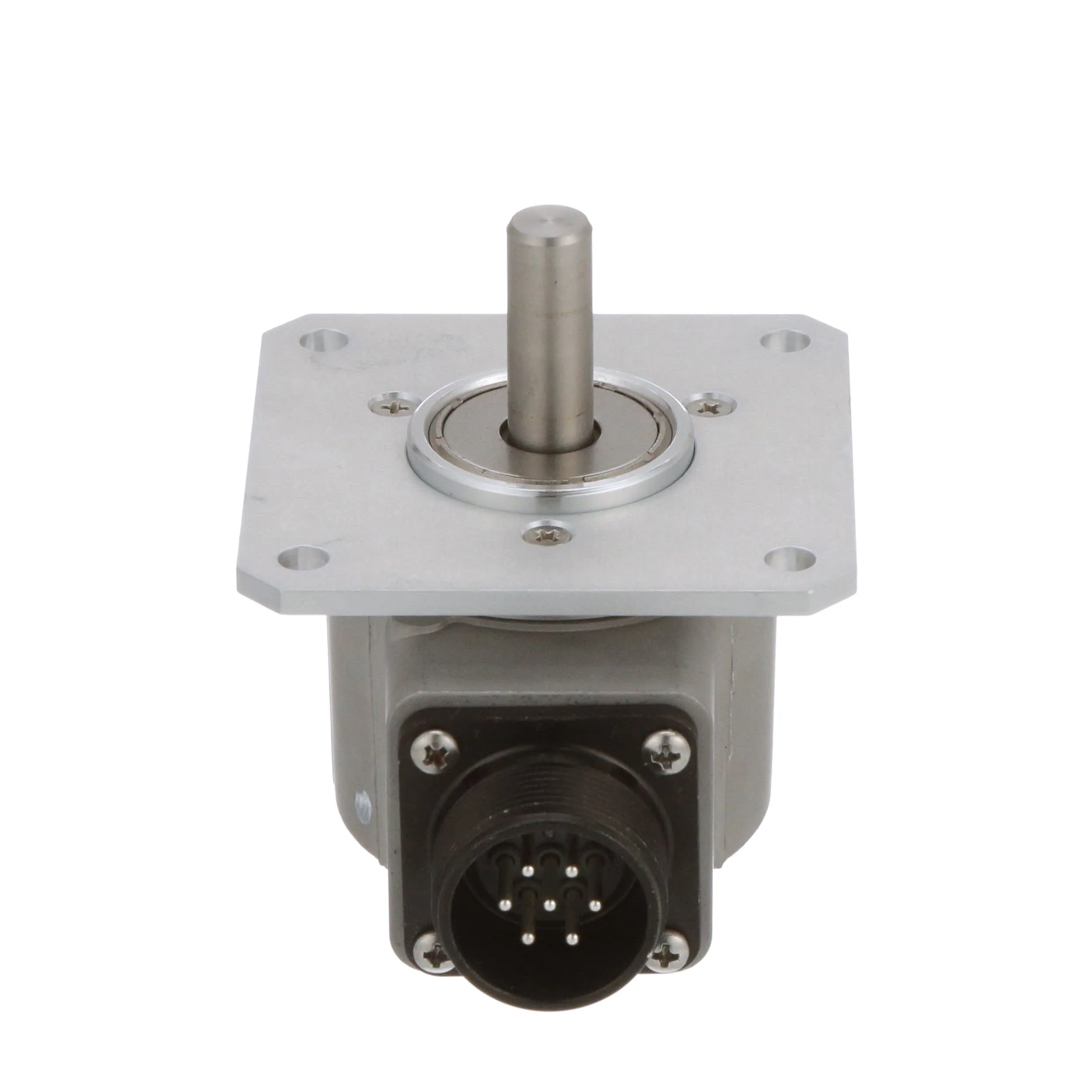

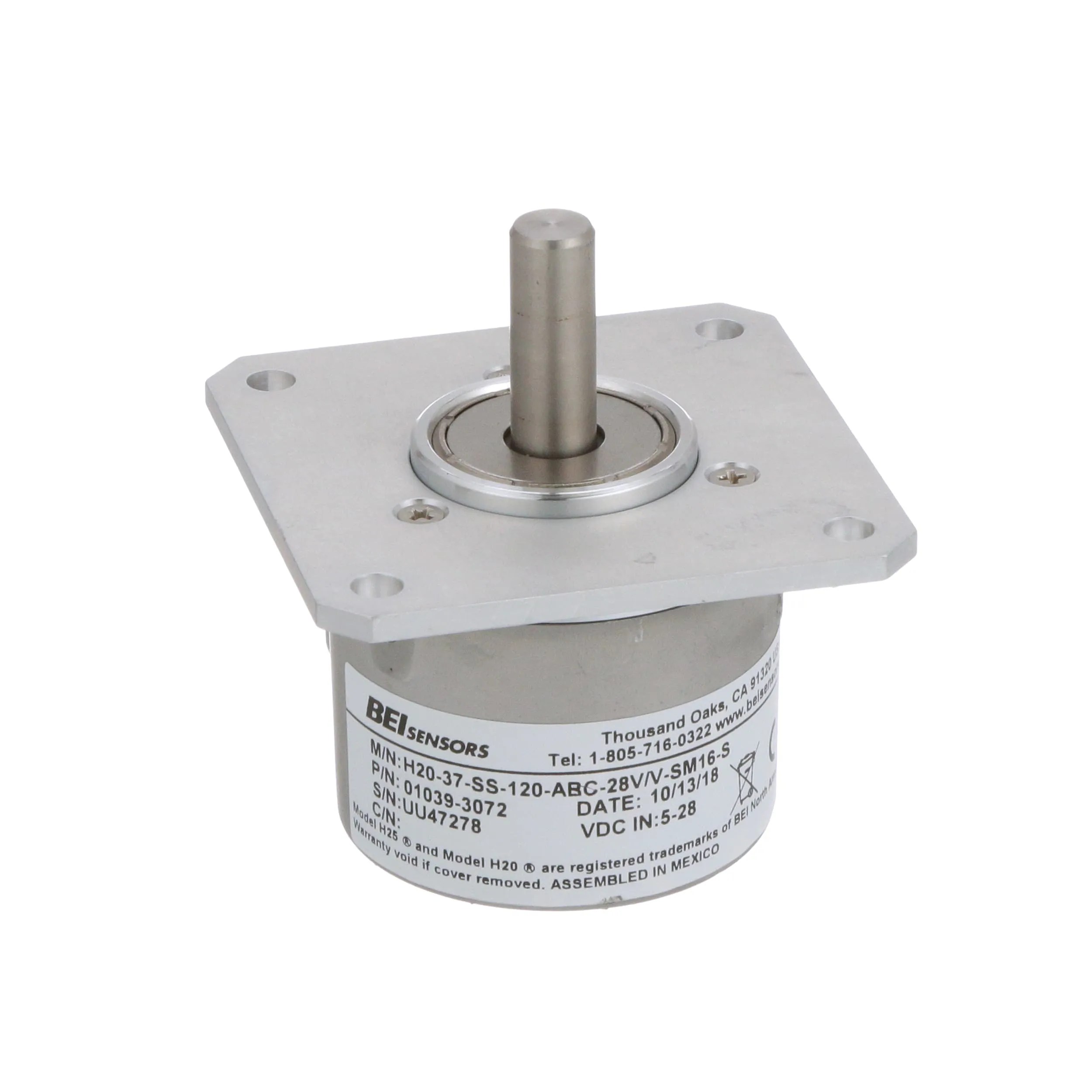

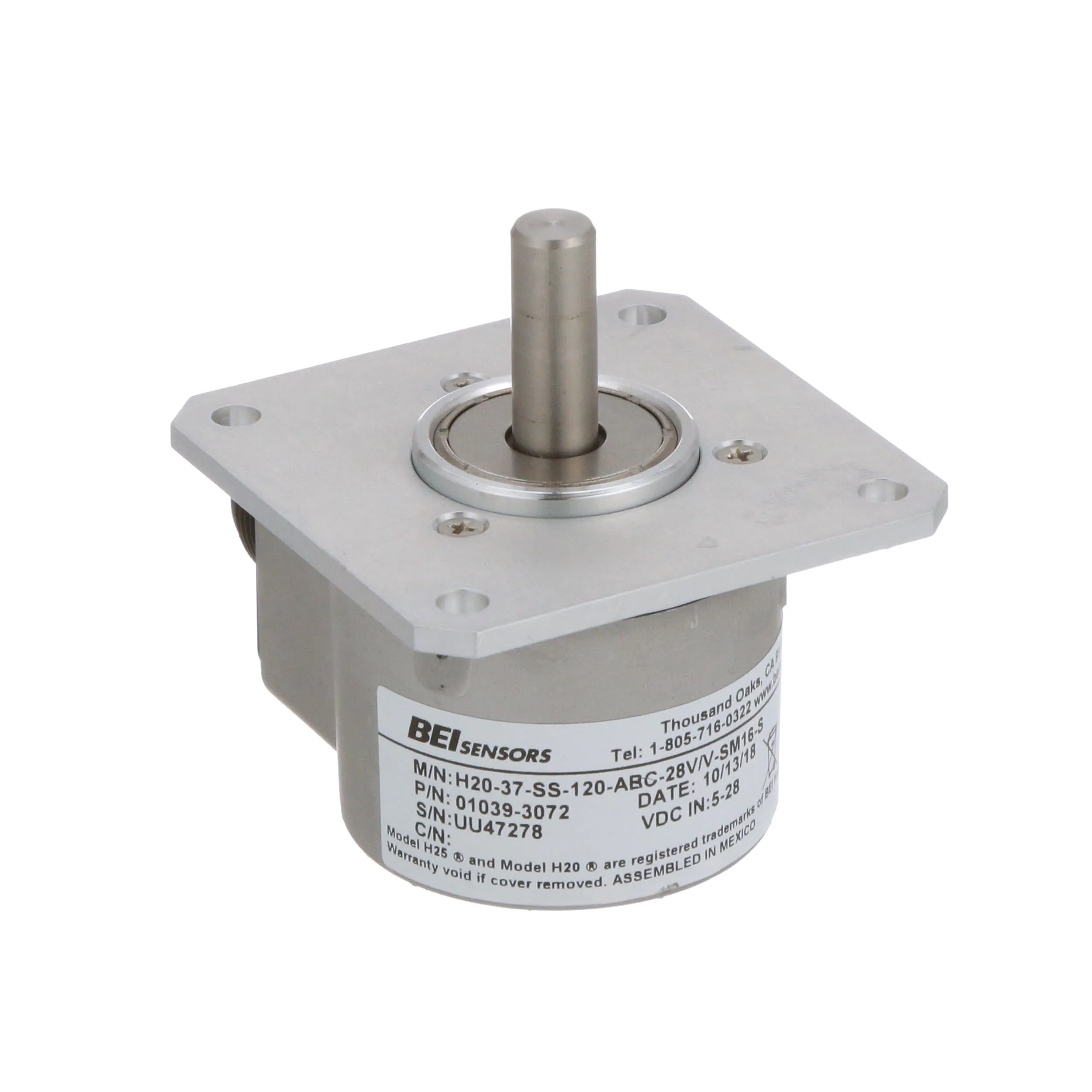

BEI Model H20® Incremental Encoder
H20 Series Encoders are extremely rugged encoders designed to economically fill the resolution range up to 4096 cycles per turn. It is also available in a hub shaft style with a flexmount (inset) for easy mounting directly to small motors.
Features:
Applications:
