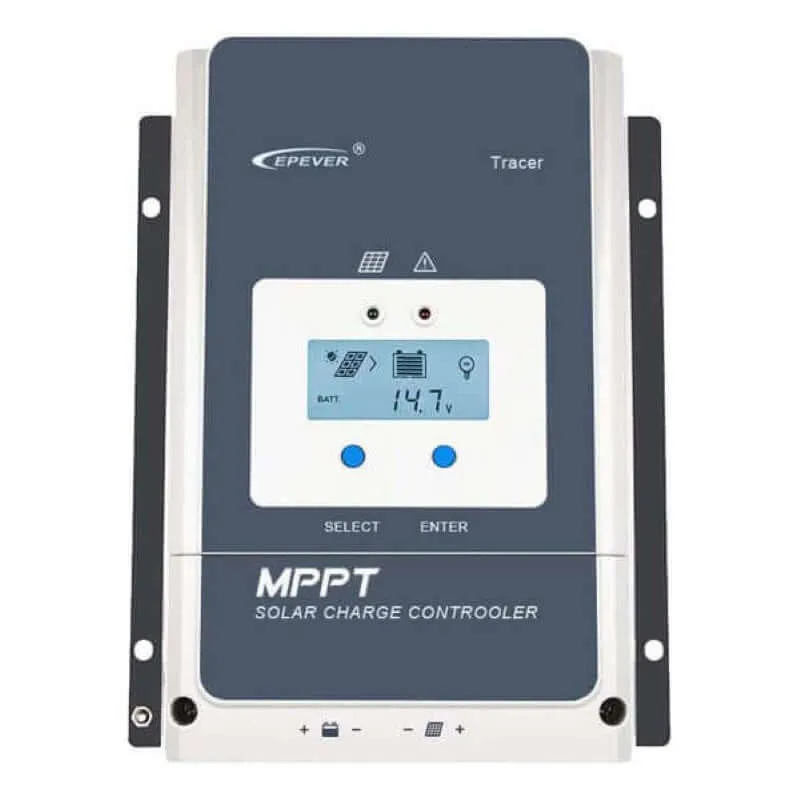

50A Tracer MPPT Solar Charge Controller Regulator Solar Power MPPT Controller 50A

Description:

Elevate your solar energy management with the 50A Tracer MPPT Solar Charge Controller. Designed for efficiency and flexibility, this controller optimizes energy extraction from solar panels and provides comprehensive protection for your battery setup.

Key Features:

• Versatile Load Control:
  Solar Power MPPT Controller 50A offers multiple load control modes including manual, lighting ON/OFF, and light ON Timer for flexible power management.

• Efficient MPPT Technology:
  Equipped with Maximum Power Point Tracking (MPPT) technology, it achieves efficiency above 99.5%, ensuring maximum energy extraction from solar panels.

• Wide Voltage Range:
  Supports various battery types and adapts to a broad MPPT operating voltage range, optimizing energy harvesting in diverse scenarios.

• Battery Compatibility:
  Compatible with Sealed, Gel, Flooded, and User-defined batteries, making it suitable for a wide range of setups.

• Comprehensive Protection:
  Built-in protections include PV reverse polarity, short-circuit, overcurrent alarm, load short-circuit, load overload, controller overheating, and battery safeguards for peace of mind.

• User-Friendly Interface:
  Monitor and control with ease using the included MT-50 display unit. It provides real-time energy statistics and enhanced usability through extended RS485 connectivity.

• Flexible Load Management:
  Choose from multiple load control modes like manual, light ON/OFF, Light ON Timer, and Time Control, allowing you to align power consumption with your specific needs.

Specifications:

• Nominal System Voltage: 12/24/36/48VDC Auto
• Battery Input Voltage Range: 8V~68V
• Battery Fuse: 80A, 58V
• Rated Charge Current:
  • 625W at 12V
  • 1250W at 24V
  • 1875W at 36V
  • 2500W at 48V
• Max. PV Open Circuit Voltage: 150V
• MPP Voltage Range: (Battery Voltage 2V)~108V
• Temperature Compensate Coefficient: -3mV/°C/2V (Default)
• Self-Consumption:
  • 98mA at 12V
  • 60mA at 24V
  • 50mA at 36V
  • 46mA at 48V
• Grounding: Common negative grounding
• Enclosure: IP20
• Pollution Degree: PD2

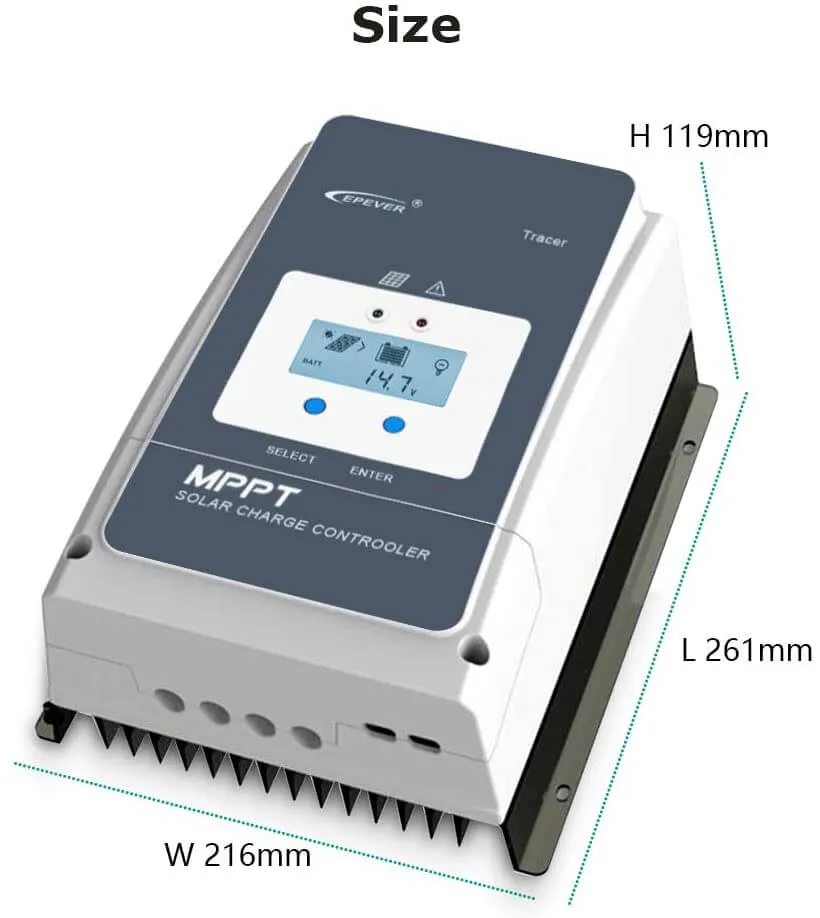

• Dimensions: 261×216×119mm
• Mounting Dimensions: 180×204mm
• Mounting Hole Size: Φ7
• Terminal: 6AWG/16mm²
• Recommended Cable: 6AWG/16mm²

Package Includes:

• 1 x Tracer 5415AN Solar Charging Controller
• 1 x User Manual
