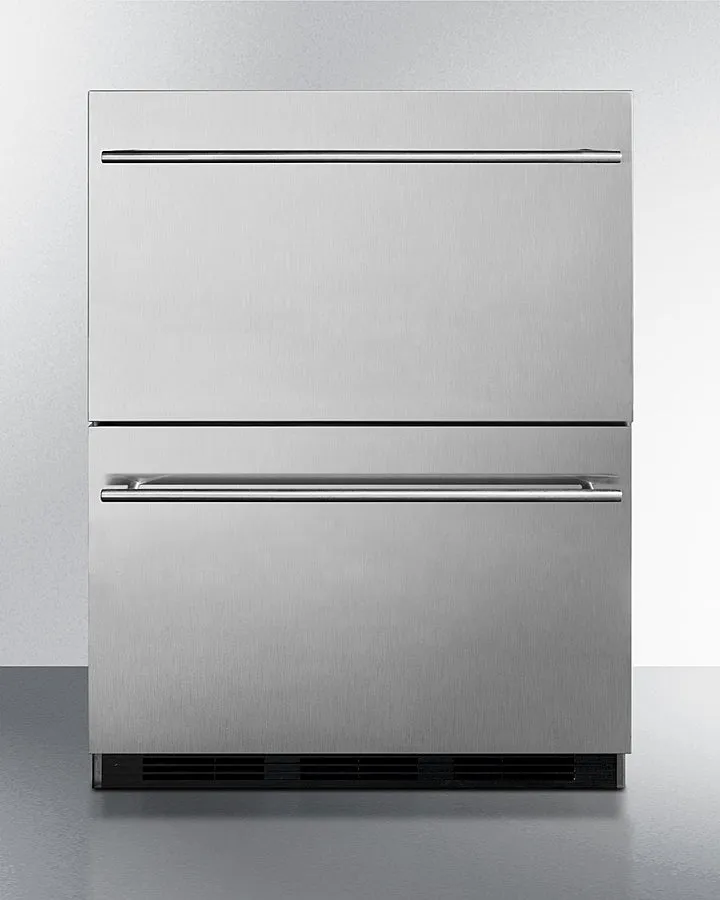

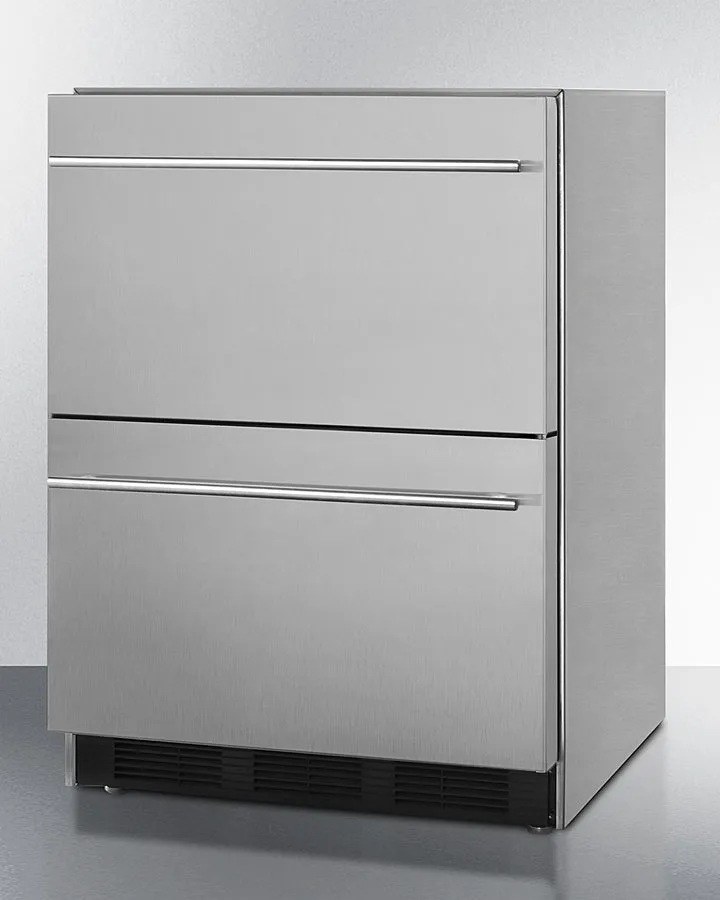

Summit 24" Wide 2-Drawer All-Refrigerator ADA Compliant - SP6DBS2D7ADA

SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

The SP6DBS2D7ADA is a 24" wide two-drawer all-refrigerator that can be used built-in or freestanding. At 32" high, this unit is designed for use under lower ADA compliant counters. Two sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed.

This unit includes an adjustable divider that lets you better organize your storage. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look. We offer an optional conversion kit that allows the drawers to be customized with overlay panels (see Panel Kit).

Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in standard counter height, see the SP6DBS2D7.

Features

• ADA Compliant: 32 inch height is designed to fit under ADA compliant counters
• Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
• Slim under-counter dimensions: Less than 24 inches wide to fit tight spaces
• Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
• Fully finished cabinet: Allows the unit to be used freestanding
• Complete stainless steel construction: Built with solid durability, inside and out
• Automatic defrost: Reduced maintenance with auto defrost system
• Adjustable thermostat: Dial thermostat for easy temperature management
• Rapid chill compartment: Special rear section is perfect for chilling wine and beer from room to drinking temperature in under an hour

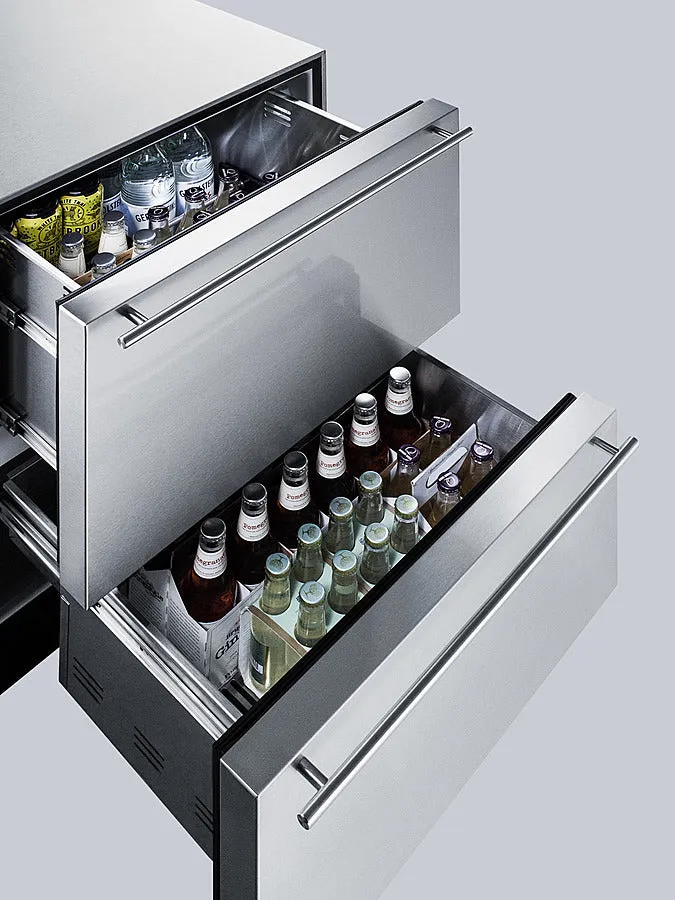

• Adjustable drawer divider: Wire divider lets you separate items into four sections for easier organization
• Large top drawer: Holds two liter bottles, gallon containers, and wine bottles in 12 1/2" height
• Customizable drawer fronts: Order our conversion kit to install your own panels over the drawers
• 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 32.25" (82 cm)
• Width: 23.63" (60 cm)
• Depth: 23.88" (61 cm)
• Depth with Handle: 25.38" (64 cm)
• Depth with door at 90°: 41.25" (105 cm)
• Capacity: 3.1 cu.ft. (88 L)
• Defrost Type: Automatic
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 1.2
• Weight: 120.0 lbs. (54 kg)
• Shipping Weight: 125.0 lbs. (57 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101069517

Refrigerator Features

• Thermostat Type: Dial
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 0.64oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Level Legs Qty: 4

Drawer Dimensions

• Interior Height 1: 9.5" (24 cm)
• Interior Width 1: 18.75" (48 cm)
• Interior Depth 1: 12.0" (30 cm)
• Interior Height 2: 12.63" (32 cm)
• Interior Width 2: 17.25" (44 cm)
• Interior Depth 2: 16.0" (41 cm)

Dimensions

• Compressor Step Height: 5.75" (15 cm)
• Compressor Step Width: 18.75" (48 cm)
• Compressor Step Depth: 4.0" (10 cm)

Available Upgrades

Exterior

• HG: Hospital grade cord
• SSK
• Latch for door
• Alarm/Thermometer
• DT: Digital thermostat
• PH: Probe Hole
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Interior

• FC: Internal Fan

Manufacturer Resources

• (.dwg)

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
