The LMIO-201 Analog Sensor Input Module is a single channel low voltage analog sensor to Digital Lighting Management (DLM) interface. It communicates a single state of occupancy, however it may be driven by multiple physical sensors wired together. The LMIO-201 works in conjunction with an auxiliary DC power source.

Features:

• Special Features: Works with analog occupancy sensors; sensors require power pack or power supply. Auxiliary relay for cycling power to connected sensors.
• Voltage: 24VDC
• Maximum current consumption: 20mA
• DLM local network connection: 2 RJ45 ports
• Interfaces existing analog occupancy sensors to DLM
• Component of Digital Lighting Management integrated control systems

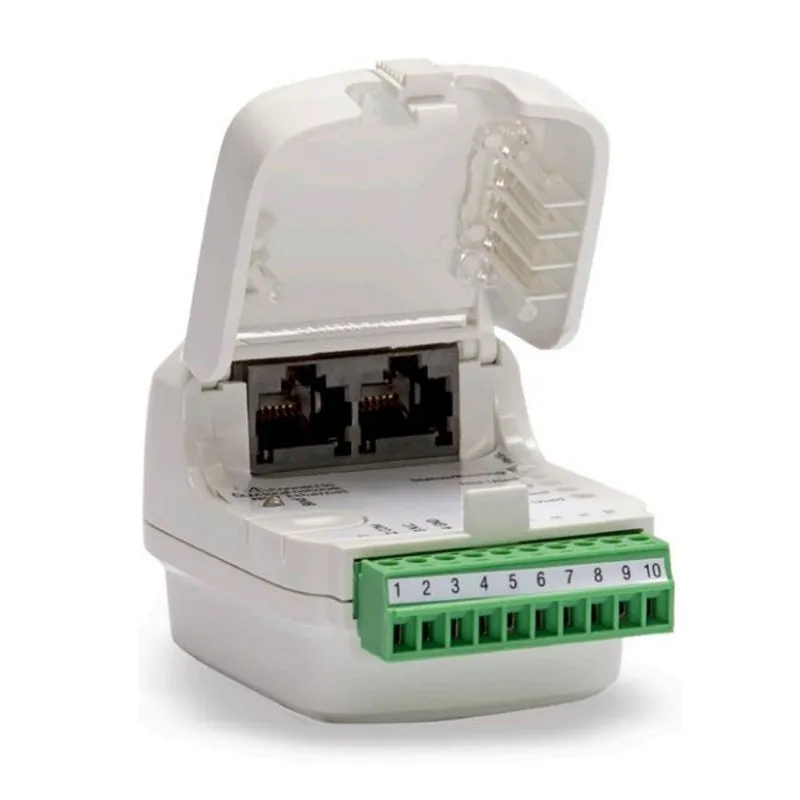

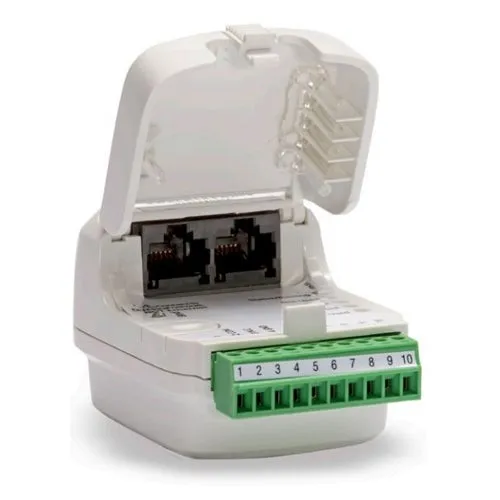

• Hinged dust cover protecting two RJ45 ports
• Allows access to DLM networking functionality including Normal Hours and After Hours parameters
• Options for DIN rail or wallbox mounting
• Typical Applications: Private and open offices, conference rooms, classrooms, training centers, lunch rooms and break rooms
• Input ratings:
• Input max. sink/source current: 1- 5 mA
• Logic input signal voltage High: >18 VDC
• Logic input signal voltage Low: < 2 VDC

Model:

LMIO-201
