Product Details
＋

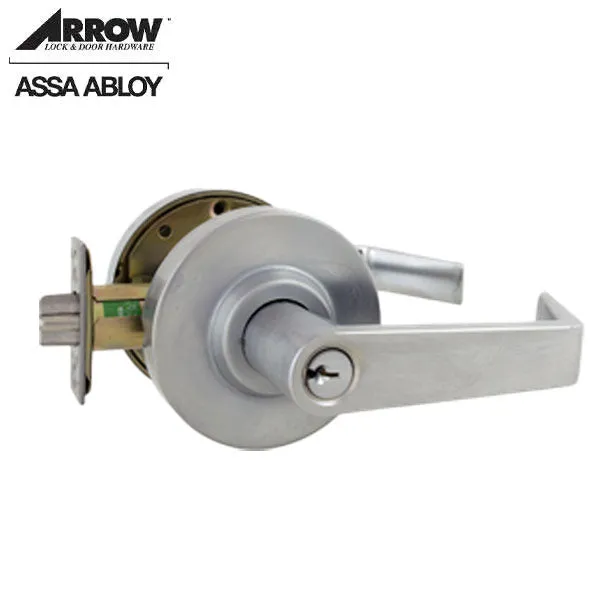

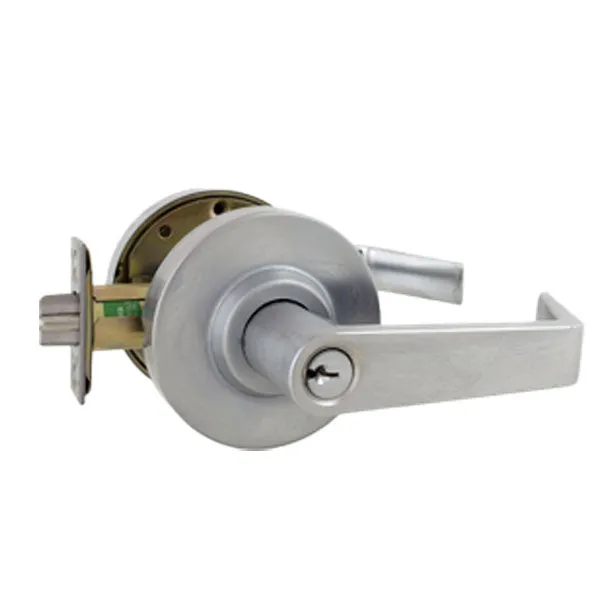

RLX series is a robust grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an arrow professional replacement product featuring removable through bolts. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.
Specifications:
| Lock Function | Passage |
| Handing | Non-Handed |
| Door Thickness Min | 1-3/8" (minimum), 1-3/4" (maximum) |
| Cylinder | Standard: 6-Pin CS Keyway |
| Backset | 2-3/4" |
| Latch bolt type | Deadlatch |
| Latch bolt Faceplate Size | 2-1/4" x 1-1/8" |
| Latch Bolt Face Type | Square Corner |
| Latch Bolt Throw | 1/2" |
| Lever Style | Sierra |
| Lever | Free Wheeling |
| Strike | 4-7/8" |
| Finish | Satin Chrome |
| Certifications | BHMA A 156.2, UL Listed |
| Rose/Escutcheon Style | Rose |
| Rose/Escutcheon Size | 3-11/32" |
| Warranty | 5-year mechanical manufacturer's warranty |
